Maximum precision stamped parts

Product applications

Stamped part product applications

Stamped and bent part product applications

Stamped and formed part product applications

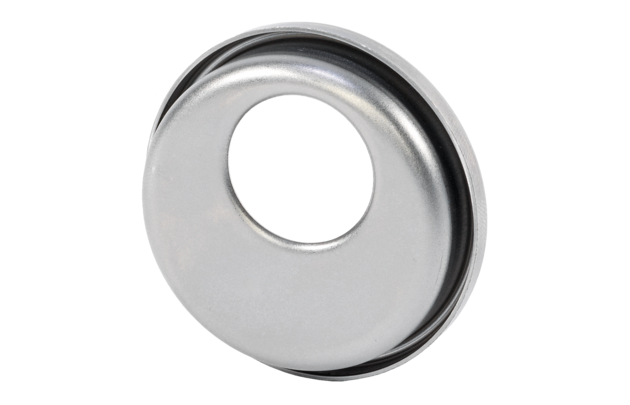

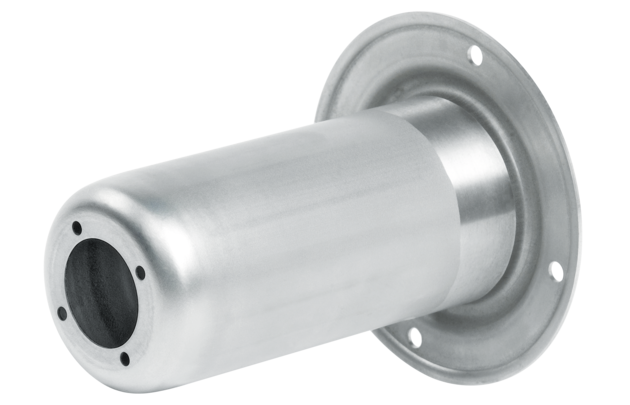

Drawn part product application

Trim part product applications

Facts about Jehle series production

Facts

Technologies

  • Coil stamping machines (excenter and servo drive) up to 6’300 kN
  • Insert stamping machines (excenter and hydraulic drive) up to 2’500 kN
  • Bending machine up to 850 kN with angle sensor technology
  • Fine straightening machine (width up to 450 mm / thickness up to 7 mm)
  • Arrondier machine (width from 16 - 760 mm / thickness from 0.6 - 3.5 mm)
Facts

Part sizes

  • In sheet thicknesses from 0.3 to 6 mm and up to 800 mm strip width from coil
  • In sheet thicknesses from 0.3 to 10 mm from strip or cut to size
  • Drawing depth up to a maximum of 120 mm
Facts

Possible materials

  • Cold and hot rolled steel sheets
  • Cr-Ni steels
  • Aluminum
  • Non-ferrous metals (copper/brass/bronze)
